ÜRÜN ÖZELLİKLERİ

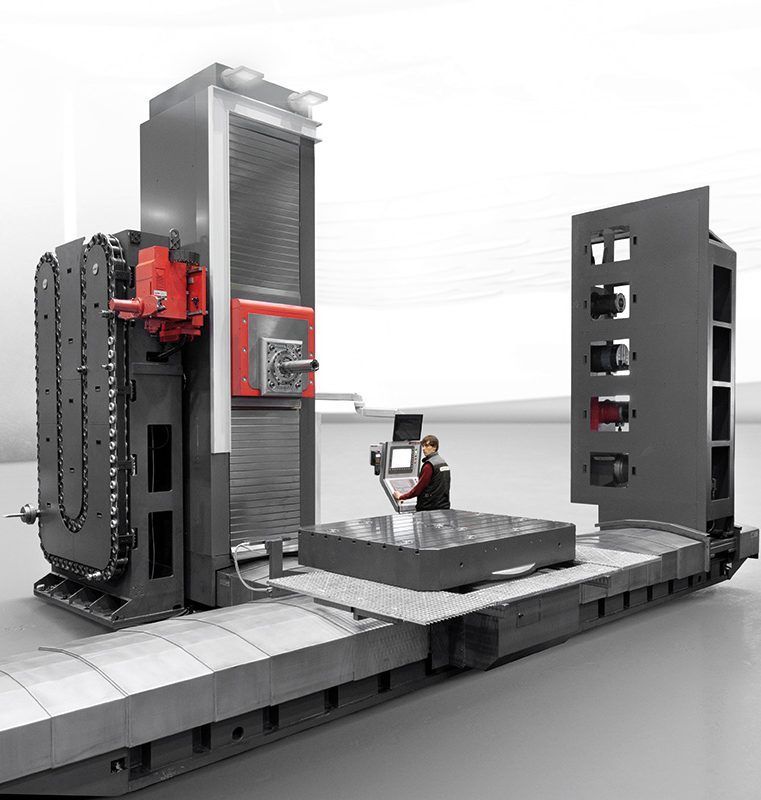

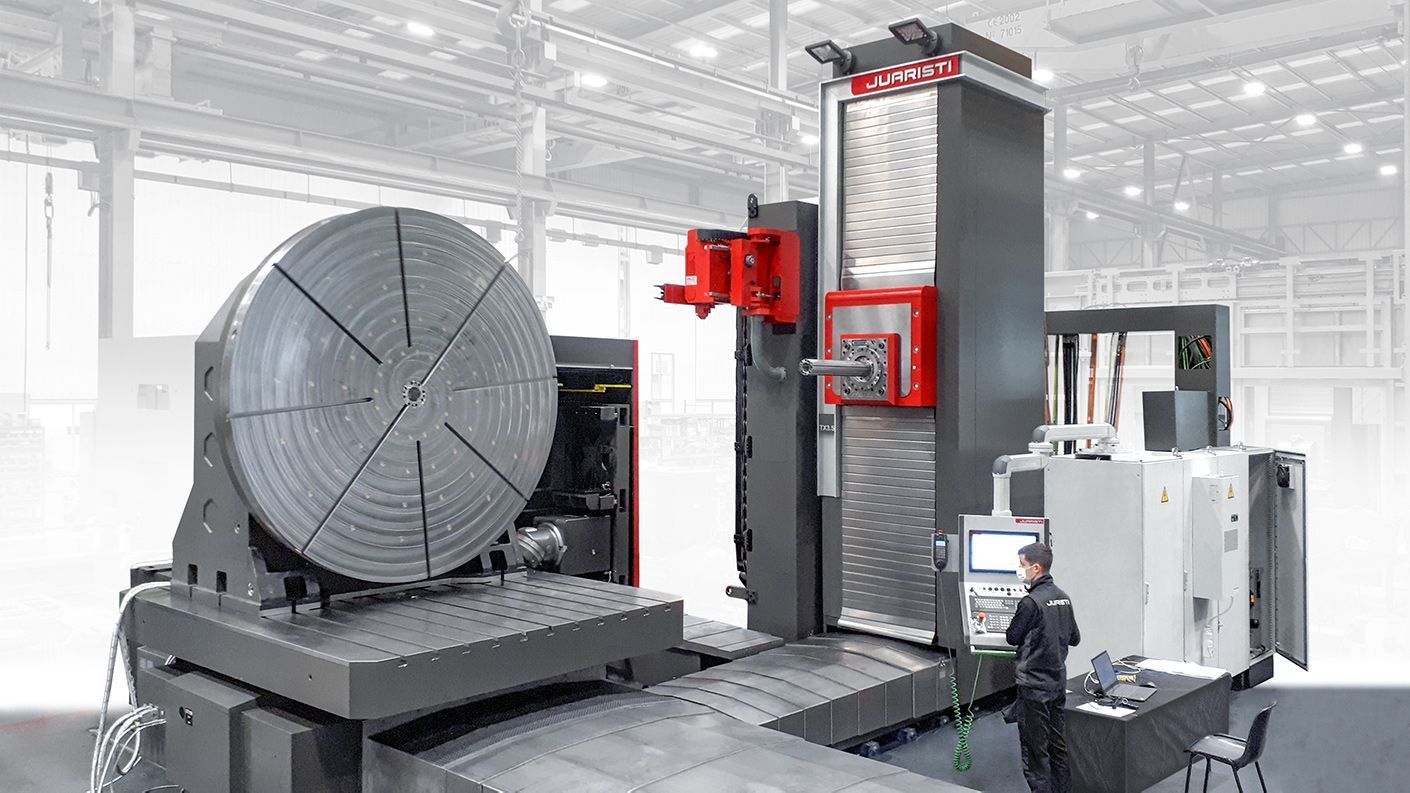

TX-S Serisi
TX-S Series		   TX1-MG8 TX3-MG20 TX7-MG40 (MG60)
X - Hareketi (mm)
X - Cross table		 mm 2,000-3,000-4,000-5.000 2,000-3,000-4,000-5,000-6,000    3,000-4,000-5,000-6,000
Y - Dikey Hareket (mm)
Y – Vertical head		 mm 1,500-2,000-2,500 2,000-2,500-3,000 2,500-3,000-3,500-4,000
Z - Kolon Enine Hareketi (mm)
Z – Longitudinal column		 mm 1,500-2,000-2,500 2,000-2,500-3,000 2,000-2,500-3,000
İş Kafası - Tabla
Head – Table
W- Axial boring bar mm 600 800 1,000
Boring bar diameter mm 110-130 130-150 150-180
Head spindle power kW 40/46 40/46 46/70
Spindle rotation speed min-1 3,500-3,000 3,500-3,000 3,000-2,500
Table size mm 1,250×1,250 / 1,600×2,000   1,450×1,450 / 2,000×2,500 2,000×2,000 / 2,500×3,000
Load capacity kg 8,000 20,000 40,000(60,000)
Table rotation speed min-1 5 5 3
Rapid feeds
X, Y, Z, W m/min 30-25 30-25 25-20
