Ürün Galerisi

ÜRÜN ÖZELLİKLERİ

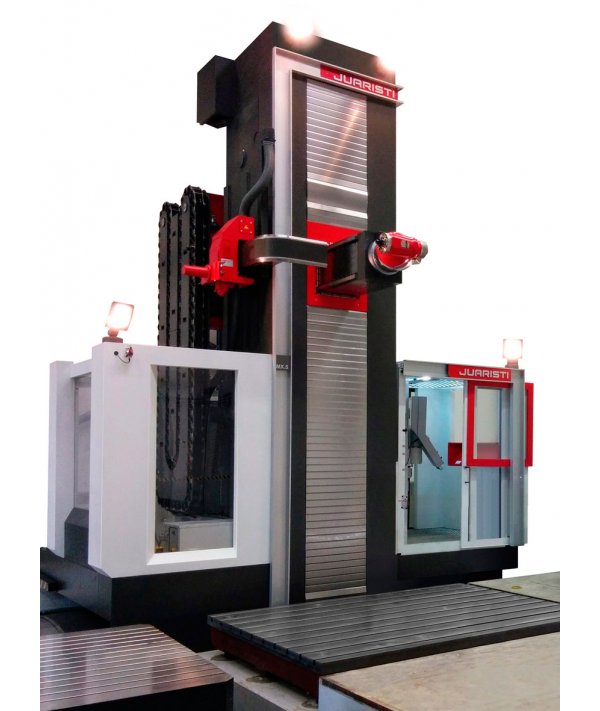

MX Serisi
MX Series		 MX5 MX7 MX9
X ekseni - Boyuna hareket (mm)
X – Longitudinal column		 4,000 + N x 2,000 4,000 + N x 2,000 4,000 + N x 2,000
Y ekseni - Dikine hareket (mm)
Y – Vertical head		 2,000 + N x 500 … 4000 3,000 + N x 500 … 6000 2,000 + N x 500 …. 7,000
Z ekseni - Enine hareket (mm)
Z – Cross RAM		 1,500 1,650 – 1,800 2,000
RAM – Head
RAM section 460 x 520 460 x 520 520 x 580
Fixed horizontal head D 200 x L 550 D 200 x L 550 D 200 x L 550
45º Universal Automatic Head 1ºx1º – 0,001ºx0,001º 1ºx1º – 0,001ºx0,001º 1ºx1º – 0,001ºx0,001º
Head power 40/46 40/60 40/64
Rotation speed 5,000 – 6,000 5,000 – 6,000 5,000 – 6,000
Torque 1,300 / 1,600 1,300 / 2,200 1,300 / 2,500
Speed ranges 2 2 2
İlerleme
Feeds
X, Y, Z, W 35-30-30 30-25-25 30-20-20
